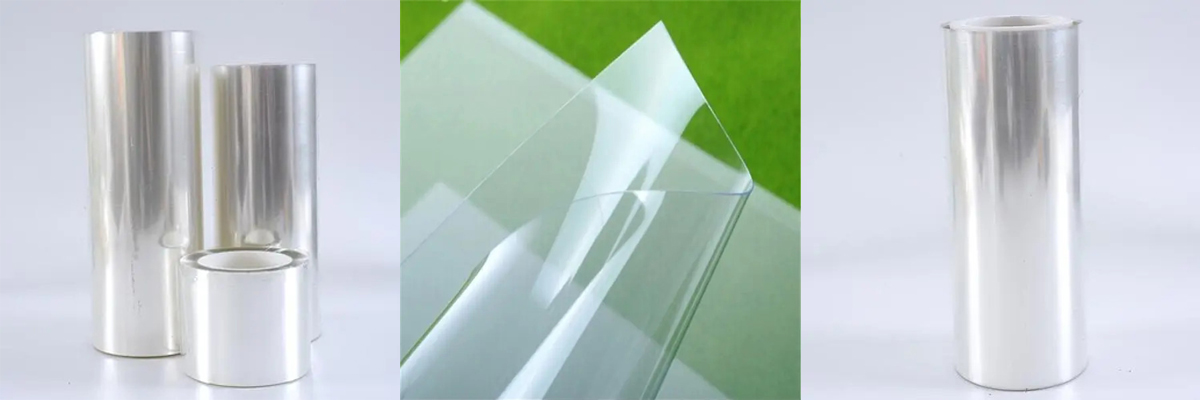

PET film is a kind of packaging film with comprehensive performance. It has good transparency and luster; it has good air tightness and fragrance retention; it has moderate moisture resistance, and its moisture permeability decreases at low temperatures. PET film has excellent mechanical properties, its strength and toughness are the best among all thermoplastics, and its tensile strength and impact strength are much higher than ordinary films; it has good stiffness and stable size, and is suitable for secondary processing such as printing and paper bags.
PET film, also known as high temperature resistant polyester film, has excellent physical properties, chemical properties, dimensional stability, transparency and recyclability. Today we will introduce the PET film material cutting machine.
PET is the abbreviation of polyethylene terephthalate. Its chemical formula is (C10H8O4)n. It is a crystalline saturated polyester. It is a milky white or light yellow, highly crystalline polymer with a smooth and shiny surface. A resin that is very common in life. The production process of PET film mainly includes batching, extrusion molding, cooling, antistatic liquid coating on the surface, cutting, packaging and other processes. Among them, in the slitting process of PET film, special cutting equipment is mainly used for cutting.
In the existing technology, laser cutting machine has gradually replaced the traditional knife cutting to cut PET film. However, the laser cutting machine will produce oily fumes and peculiar smells during the film cutting process. These oily fumes permeate the air and easily affect the health of operators.
In order to solve this problem, we recommend the use of PET film material cutting machine. This equipment uses blades for cutting. It belongs to cold cutting process. The cutting edges are neat and smooth without burrs. It has an adsorption platform and does not need to use traditional clamping devices. It is also guaranteed to be within ±0.01mm.
Various parameters of PET film material cutting machine:
|
Technical parameters / model |
AOL-1625 |
AOL-1825 |
|
Effective working area |
1600x2500mm |
1800x2500mm |
|
Multi-function tool |
Vibrating knife full cut, semi-cutting cut, indentation, drawing mark, cursor positioning, camera positioning edge cutting, high power active round knife |
|
|
safety devices |
Safety devices use infrared sensing, safe and reliable |
|
|
Cutting speed |
200-2000mm/s |
|
|
Cutting thickness |
≤50mm Other thicknesses can be customized according to the material |
|
|
Applicable materials |
Knitting, woven, fur (sheep shearing), PU leather, oxford cloth, canvas, sponge, imitation leather, cotton linen, blended fabric etc. All kinds of clothing, bags, sofa fabrics and carpet fabric etc |
|
|
Material fixing method |
Vacuum partition adsorption |
|
|
Transmission port |
Network port |
|
|
Transmission system |
Matsushita servo motor, linear linear guide, timing belt, lead screw |
|
|
rated power |
11kw |
|
|
Rated voltage |
380V±10%/220V±10% Optional |
|
|
Control System |
Chinese and English LCD touch screen |
|
|
Operating environment |
Operating environment Temperature 0-40°C Humidity 20%-80%RH |
|
|
Support file format |
AI、PLT、DXF、CDRetc |
|
|
Overall size |
3570x2290x1165mm |
3570x2500x1165mm |
Advantages of PET film material cutting machine:
1. The advanced high-end four-axis high-speed motion control system with independent intellectual property rights is adopted. The system upgrade and maintenance are not controlled by a third party. The later maintenance is convenient, with high reliability and low cost.
2. Adopting the international advanced replaceable head design concept, the tool head is non-fixed and welded and integrated, and can be conveniently replaced and equipped with different functional tool heads according to actual work needs and business scope expansion
3. Considering the customer's actual use environment factors, the anti-interference operation screen is specially configured, and it will not be affected by the surrounding electronic environment during work, and the screen will not be blurred
4. Install a special stabilizing device to effectively reduce the vibration range of the equipment and keep the machine performance stable and accurate for a long time
5. The equipment adopts advanced and mature rolling table design, the width of the platform can be customized, the theoretical cutting length is unlimited, and the vacuum suction design is adopted, with super strong wind and strong suction (small sample adsorption is no longer difficult)
6. The weight of the whole machine is more than 1.5 tons, high-speed operation does not vibrate, cutting, docking assembly line, all-round service customer needs.
Let's use a video to understand how the PET film material is cut
AOL fully automatic computerized cutting system is specially designed for your mass production cutting needs, using blade cutting machine for cutting, AOL fully automatic cutting machine provides precise results when running at high speed, easily producing a series of lines, shapes and arcs.
AOL intelligent blade cutting machine has high precision and high efficiency. Our professional after-sales service can provide automatic cutting solutions for various industries.
