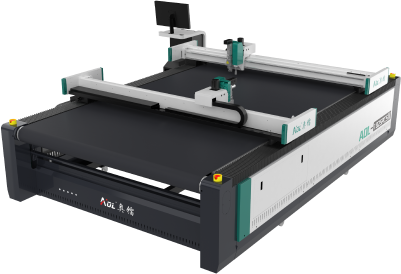

Gasket cutting machine

● Using Sweden Linden gear transmission, high cutting precision ± 0.5mm.

● We chose Panasonic servo motor system , production efficiency is increased by more than 3 times

● We use knife tool with special material ,vertical cut without temper. So the edge of the material is smooth and burr-free.

● Our machine could save your labor and material more than $120000 every year, the product competitiveness would be improved greatly.

Inquiry Specification

AOL Independently-developed AOLCUT software ,one key Import the data directly then cut, your employee will use skillfully after 2 hours training time
Super master automatic nesting software, saving material more than 20%
Using Sweden Linden gear transmission, high cutting precision ± 0.5mm.
We chose Panasonic servo motor system , production efficiency is increased by more than 3 times
We use knife tool with special material ,vertical cut without temper. So the edge of the material is smooth and burr-free.
Our machine could save your labor and material more than $120000 every year, the product competitiveness would be improved greatly.
Laser projection realize projecting to any position you want ,automatic cutting, small pieces material leftovers could be recycled
Unique multi-zone technology, the adsorption capacity is increased by more than 5 times
The anti-static system of the whole machine to maximize the protection of personnel

Machine parameters

Model

AOL-FH1625DCS / AOL - FH1825DCS (Accept customization)
Worktable

1600x2500mm / 1800x2500mm / 2100x2500mm / Custom made
Rated Power

2.2KW / 7.5KW / 9KW
Cutting speed

800-1500MM/S
Safety device

Infrared sensing, safe and reliable
Supporting documents

AI, PLT, DXF, CDR, etc
Drive system

Servo motor, rack, guide rail, etc
Cutting Material

Asbestos-free sheet, PTFE, graphite board, rubber board, asbestos board, silica gel board, Graphite metal, Pvc soft board, fluorine rubber board, and so on.

Energy consumption comparison

Cutting speed
Cutting accuracy
Material utilization
Cutting cost

Automatic cutting and special-shaped cutting

High precision, high efficiency, time and labor saving, smooth cutting without burr

2000mm/s

Radium cutting speed

300mm/s

Manual cutting speed

Automatic cutting of special shape to improve material utilization

There is no burr in cutting, saving time and labor, and there is no need for secondary processing

±0.1mm

Cutting accuracy of Austrian radium machine

±0.4mm

Manual cutting accuracy

Material utilization

No need of mold, automatic typesetting and cutting, high efficiency and good effect

85%

Cutting efficiency of Austrian radium machine

60%

Manual cutting efficiency

Cutting cost

High precision, high efficiency, time and labor saving, bid farewell to the difficulty of recruitment

11KWh / h power consumption

Cutting cost of Austrian radium machine

300Yuan / day

Manual cutting cost

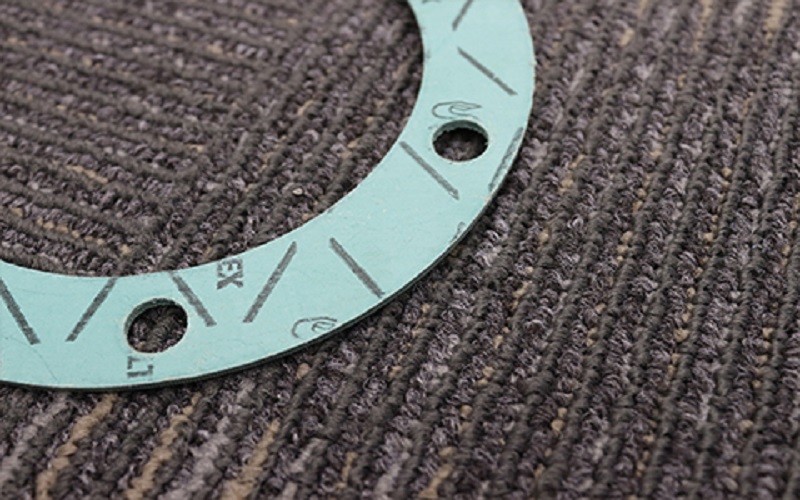

Cutting case

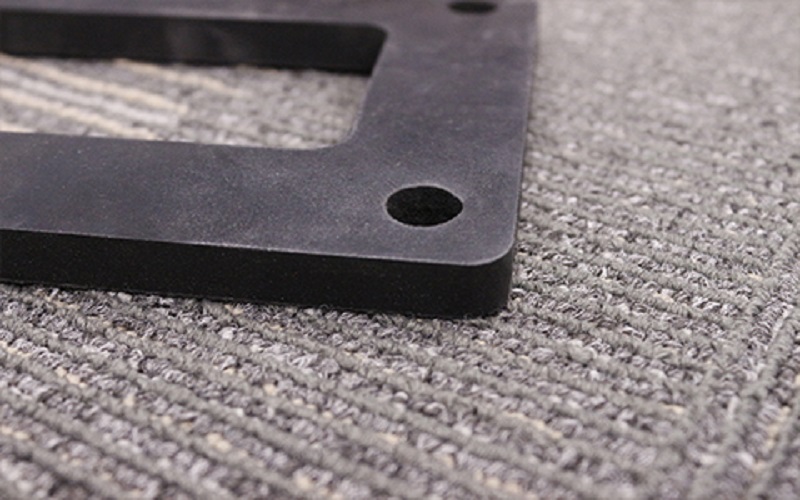

Rubber gasket cutting

Using special material tool, vertical cutting without taper and edge without burr

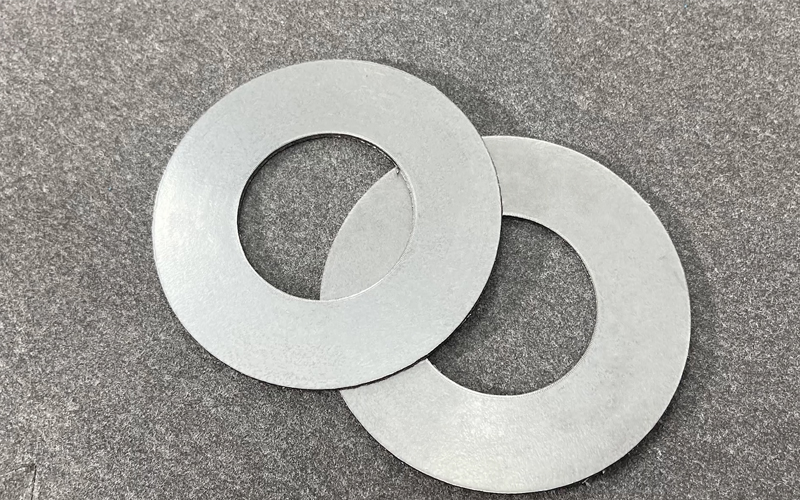

Graphite gasket cutting machine

The software image adopts laser projection technology, and the leftover material is automatically cut at will

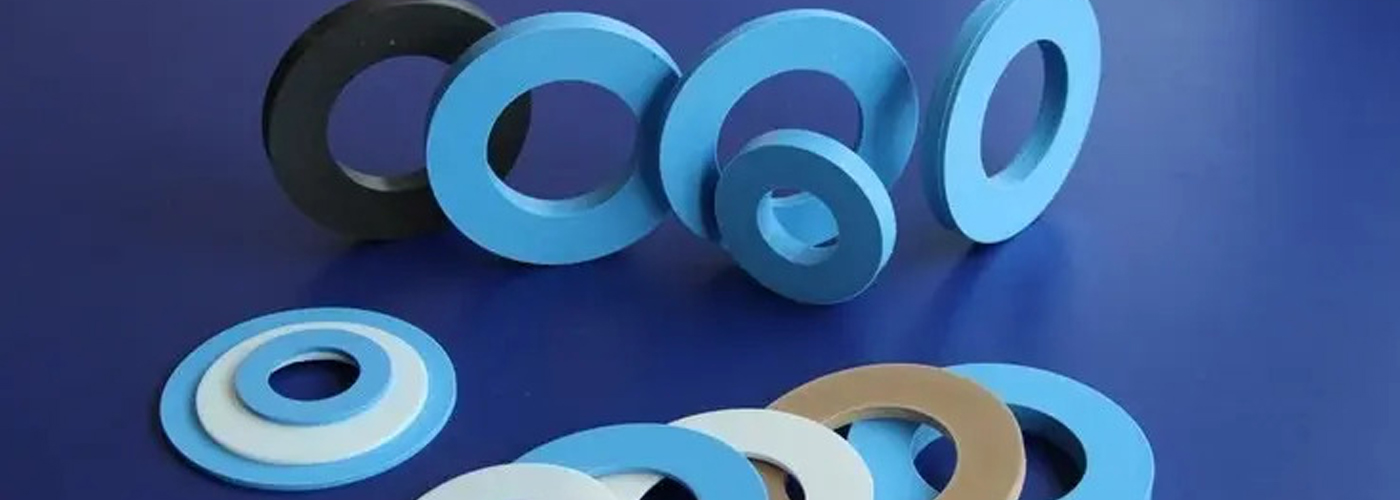

Cutting of PTFE gasket

Unique multi-partition technology, the adsorption force is increased by more than 5 times

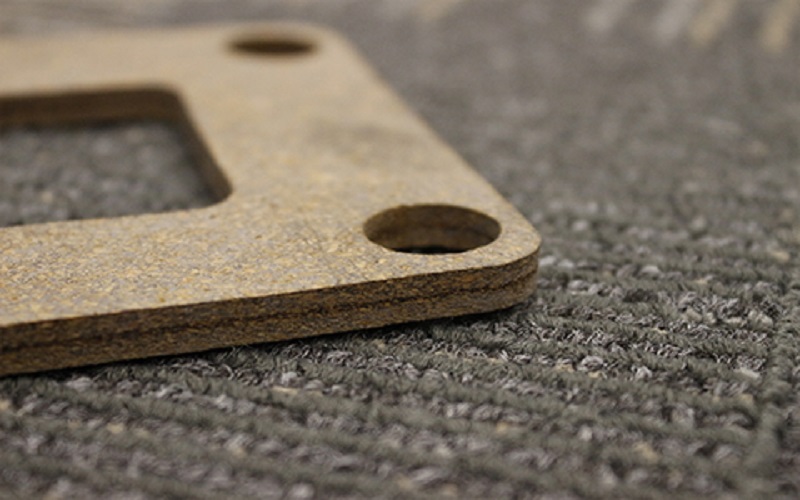

Cork gasket cutting

Anti-static system of the whole machine, to maximize the protection of personnel safety

Rubber gasket cutting

Using special material tool, vertical cutting without taper and edge without burr

Graphite gasket cutting machine

The software image adopts laser projection technology, and the leftover material is automatically cut at will

Cutting of PTFE gasket

Unique multi-partition technology, the adsorption force is increased by more than 5 times

Cork gasket cutting

Anti-static system of the whole machine, to maximize the protection of personnel safety

Tool introduction

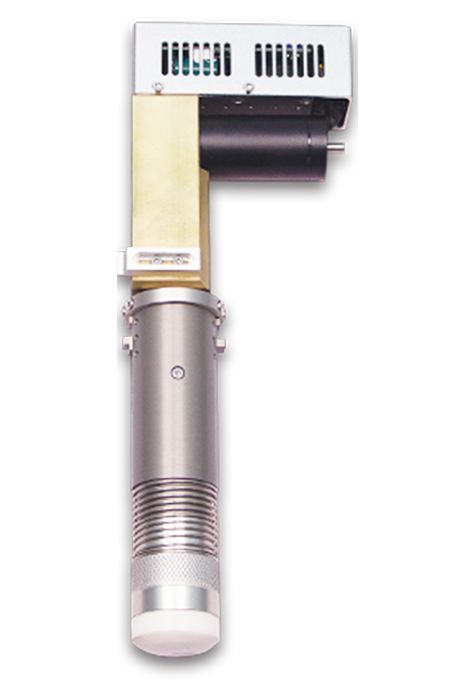

Oscillating Knife Tool
Pneumatic knife
Milling Knife

Oscillating Knife Tool

The Electrical Oscillating Tool is super suitable for cutting the material of medium density.Coordinated with various kinds of blades, applied for cutting different materials
Applicable industries: Corrugated, Cardboard, Carpet, Foam board, Honeycomb board, Car Mat, Seat Cover, KT board, Gray board, Composite Materials, Leather, Fabric, etc

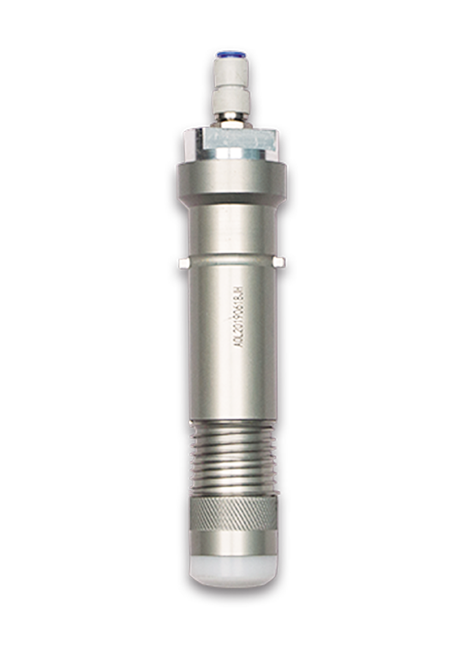

Pneumatic knife

Driven by compressed air,Pneumatic Knife Tool with 6mm stroke, is especially for cutting hard and compact materials. Equipped with different kinds of blades,it can make different process effect.The tool can cut the material up to 110mm by using specialized blades
Applicable industries: Rubber Board , PTFE , Graphite Board, Asbestos Board, Asbestos Free Board, Fluorine Rubber Board, Sound Insulation, etc

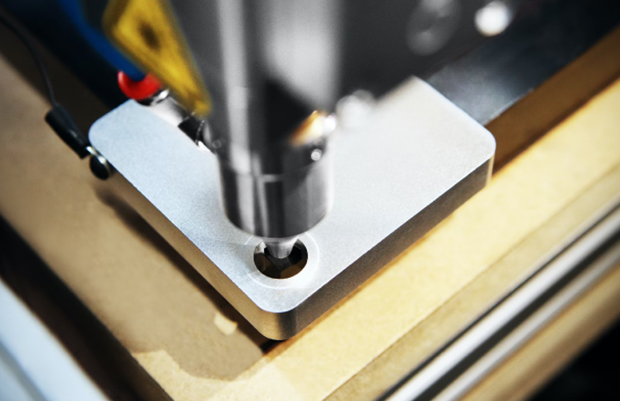

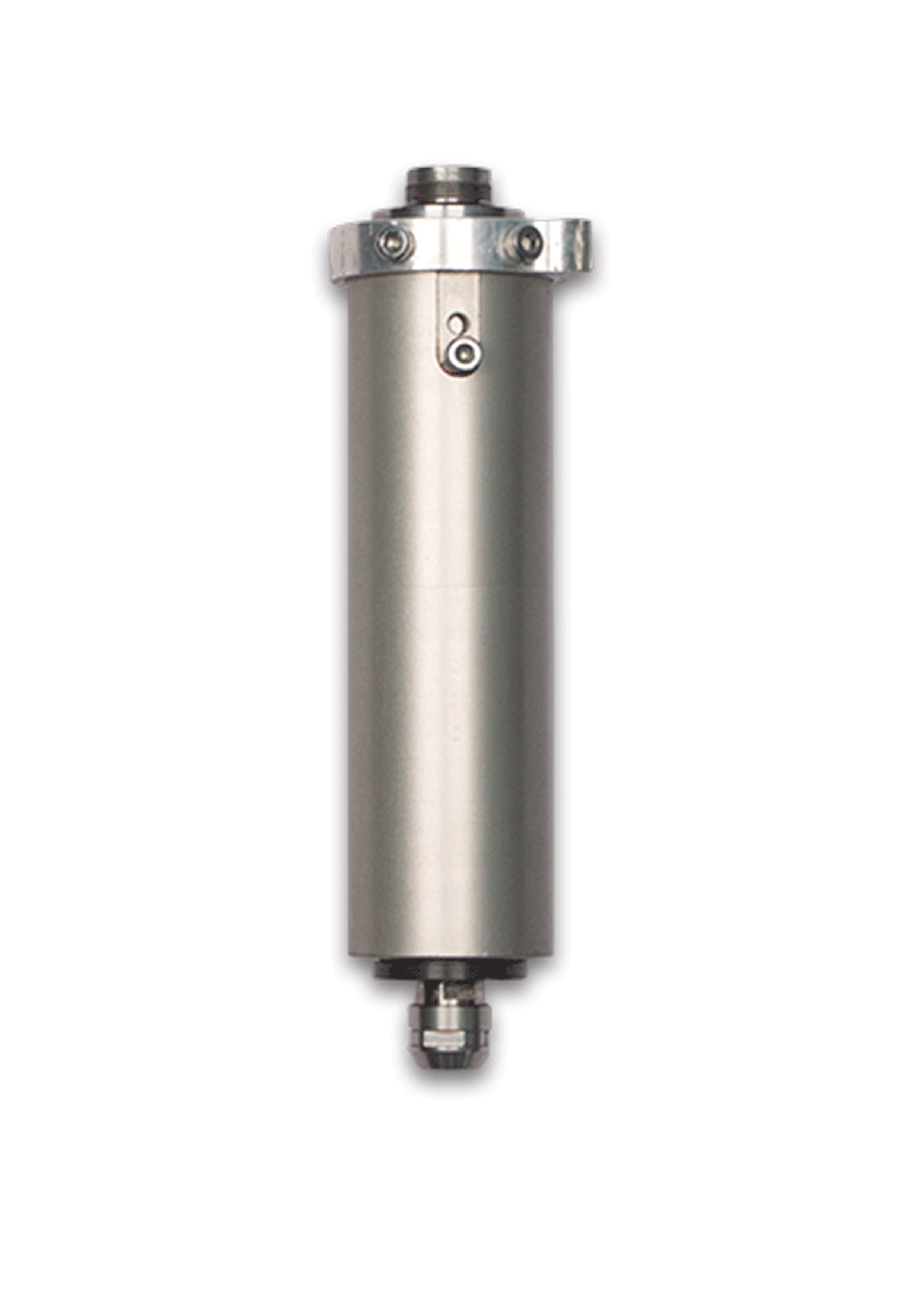

Milling Knife

With imported spindle,it has a rotating speed of 60000 rpm.The router driven by high frequency motor can be applied for cutting hard materials with the maximum thickness of 22 mm.
Applicable industry: Acrylic, MDF Board, PVC Board, Display Stand, etc
