Sporting goods cutting machine

● Digital cutting instead of manual, the use of blade high-precision cutting, smoke-free environmental protection and tasteless

● Same staffing, processing more orders

● Optimize material utilization through software auxiliary equipment

● Maximum process security through automated processes, flexible order controls or reliable budgeting and accounting

Inquiry Specification

Sporting goods cutter

Independent research and development of software one-click import, general workers 2 hours skilled on the job
Super nesting master software, material utilization rate increased by more than 10%.
Taiwan linear guide rail transmission system is selected, and the accuracy ±0.1mm
With the Japanese Panasonic servo system, the production efficiency has been increased by more than four times
Automatic drawing, automatic unloading, time-saving and labor-saving
Quick tool exchange system for easy cutting of a wide range of hardware and soft materials
More than 500,000 labor and raw materials are saved every year
Anti-static interference and soft start device protect the safety and stability of the equipment.
Aluminum-magnesium alloy adsorption platform, durable and not deformed.

Machine parameters

Model

AOL-1625/AOL-1825/AOL-2125
Worktable

1600x2500mm / 1800x2500mm / 2100x2500mm / Custom made
Positioning accuracy

±0.01mm
Cutting speed

200-2000mm/s
Safety device

Infrared induction
Supporting documents

AI, PLT, DXF, CDR, etc
Feeding mode

Automatic feeding
Drive system

Servo motor, rack, belt, etc
Rated Voltage

380V±10%
Machine size

It can be customized according to actual needs

Energy consumption comparison

Cutting speed
Cutting accuracy
Material utilization
Cutting cost

Fully automatic cutting, high precision and burr free

High precision, high efficiency, time and labor saving, improve production efficiency

2000mm/s

Radium cutting speed

300mm/s

Manual cutting speed

Automatic edge finding cutting, special-shaped cutting

High precision, high efficiency, time-saving and labor-saving, and improve production efficiency

±0.1mm

Cutting accuracy of Austrian radium machine

±0.4mm

Manual cutting accuracy

Material utilization

Automatic edge finding and special-shaped cutting, one key cutting of various materials

85%

Cutting efficiency of Austrian radium machine

60%

Manual cutting efficiency

Cutting cost

High precision, high efficiency, time and labor saving, bid farewell to the difficulty of recruitment

11KWh / h power consumption

Cutting cost of Austrian radium machine

300Yuan / day

Manual cutting cost

Cutting case

Surfboard cutting

Tool exchange system, suitable for cutting more materials
Cutting of inflatable cushion

Automatic typesetting, automatic cutting, automatic loading and unloading
Yoga mat cutting

The efficiency is 3-5 times higher than that of manual work, and the cutting standard is within 0.1mm
Ball cutting machine

Precise cutting quality, best edge quality, maximum guarantee that the material is not damaged

Surfboard cutting

Tool exchange system, suitable for cutting more materials

Cutting of inflatable cushion

Automatic typesetting, automatic cutting, automatic loading and unloading

Yoga mat cutting

The efficiency is 3-5 times higher than that of manual work, and the cutting standard is within 0.1mm

Ball cutting machine

Precise cutting quality, best edge quality, maximum guarantee that the material is not damaged

Tool introduction

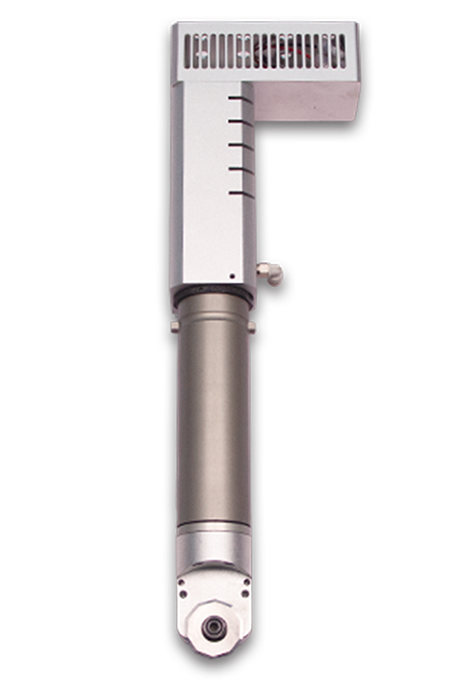

Oscillating Knife Tool
Circular knife
Pneumatic knife

Oscillating Knife Tool

The Electrical Oscillating Tool is super suitable for cutting the material of medium density.Coordinated with various kinds of blades, applied for cutting different materials
Applicable industries: Leather, Fabric, Corrugated, Cardboard, Carpet, Foam board, Honeycomb board, Car Mat, Seat Cover, KT board, Gray board, Composite Materials, etc

Circular knife

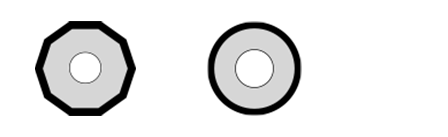

Circular knife puts the materials by the high-speed rotating blades driven by the servo motor.The tool can be installed with circular blades and decagonal blades .etc which are especially suitable for cutting woven materials
Applicable industries: Leather, Textiles, Fabric, No-woven Fabric, Fur, Multi-layer, Carpet, Sporting Goods and other industries

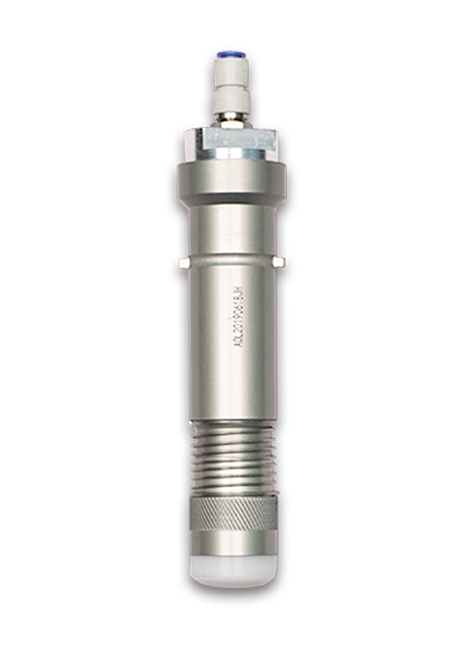

Pneumatic knife

Driven by compressed air,Pneumatic Knife Tool with 6mm stroke, is especially for cutting hard and compact materials. Equipped with different kinds of blades,it can make different process effect.The tool can cut the material up to 110mm by using specialized blades
Applicable industries: Rubber Board , PTFE , Graphite Board, Asbestos Board, Asbestos Free Board, Fluorine Rubber Board, Sound Insulation, etc

Worry free service

Three year warranty

Return without reason for seven days

Lifetime free upgrade

Lifelong free service
