Garment cutting machine

● Tool exchange system, suitable for more material cutting

● The whole machine anti-static system protects the safety of personnel

● Self-developed software can achieve one lick import and an average worker can operate proficiently in two hours.

● Save more than 500,000 labor and raw materials cost every year, Greatly improved the product’s competitiveness.

Inquiry Specification

Independent research and development of software one-click import, general workers 2 hours skilled on the job
Super nesting master software, material utilization rate increased by more than 10%.
Taiwan linear guide rail transmission system is selected, and the accuracy ±0.1mm
With the Japanese Panasonic servo system, the production efficiency has been increased by more than four times
Automatic drawing, automatic unloading, time-saving and labor-saving
Quick tool exchange system for easy cutting of a wide range of hardware and soft materials
More than 500,000 labor and raw materials are saved every year
AOL's unique tool exchange system, cutting, punching, and marking automatic.
This model has won 8 technical patents at home and abroad

Machine parameters

Model

AOL-1625FPS / AOL - 1825FPS / AOL - 2125FPS (Accept customization)
Worktable

1600x2500mm / 1800x2500mm / 2100x2500mm / Custom made
Positioning accuracy

±0.01mm
Cutting speed

200-2000mm/s
Cutting Thickness

≤50MM
Safety device

Infrared induction
Supporting documents

AI, PLT, DXF, CDR, etc
Drive system

Servo motor, rack, belt, etc
Rated Voltage

380V±10%
Material fixing method

Zoned vacuum adsorption

Energy consumption comparison

Cutting speed
Cutting accuracy
Material utilization
Cutting cost

Automatic cutting and automatic edge finding

High precision, high efficiency, time-saving and labor-saving, one key special-shaped cutting

2000mm/s

Radium cutting speed

200mm/s

Manual cutting speed

High precision, high efficiency, time and labor saving

Automatic discharge system to improve material utilization

±0.1mm

Cutting accuracy of Austrian radium machine

±0.4mm

Manual cutting accuracy

Material utilization

Automatic typesetting, automatic identification printing, one key cutting, time-saving and labor-saving

80%

Cutting efficiency of Austrian radium machine

60%

Manual cutting efficiency

Cutting cost

High precision, high efficiency, time and labor saving, bid farewell to the difficulty of recruitment

11Yuan / day

Cutting cost of Austrian radium machine

300Yuan / day

Manual cutting cost

Cutting case

Denim cutting

Precise cutting, personalized customization, simple operation
Plaid cutting

Automatic edge finding cutting, one key special-shaped cutting
Plush fabric cutting

Super layout master software and material utilization increased by 10%
Canvas cutting

One click Import graphic cutting saves time and effort

Denim cutting

Precise cutting, personalized customization, simple operation

Plaid cutting

Automatic edge finding cutting, one key special-shaped cutting

Plush fabric cutting

Super layout master software and material utilization increased by 10%

Canvas cutting

One click Import graphic cutting saves time and effort

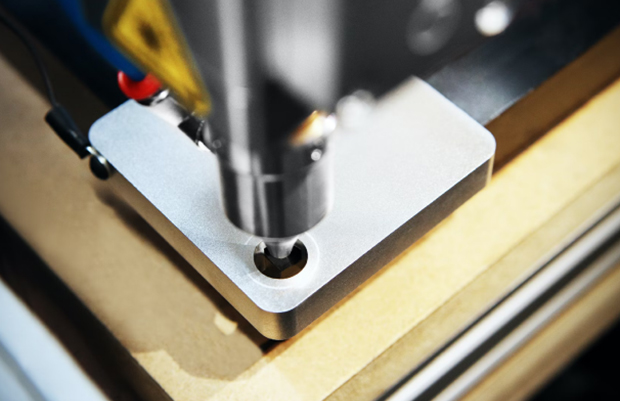

Tool introduction

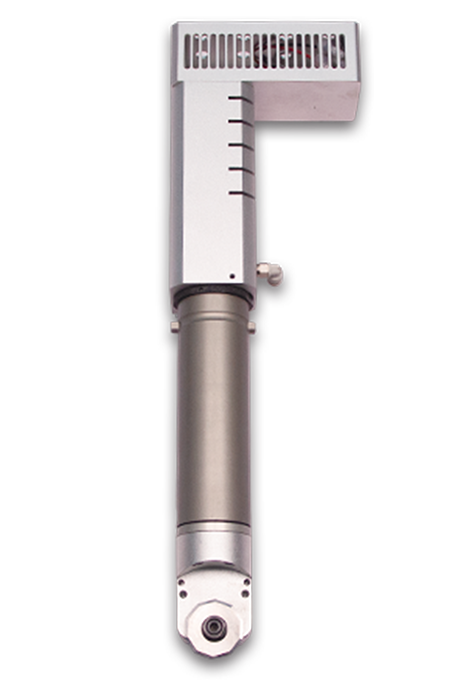

Oscillating Knife Tool
Circular knife
Pneumatic knife

Oscillating Knife Tool

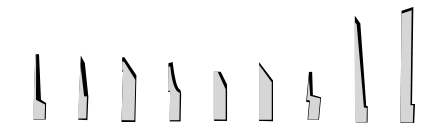

The Electrical Oscillating Tool is super suitable for cutting the material of medium density.Coordinated with various kinds of blades, applied for cutting different materials
Applicable industries: Leather, Fabric, Corrugated, Cardboard, Carpet, Foam board, Honeycomb board, Car Mat, Seat Cover, KT board, Gray board, Composite Materials, etc

Circular knife

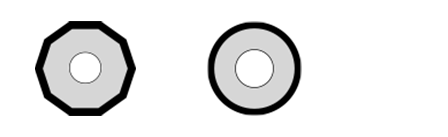

Circular knife puts the materials by the high-speed rotating blades driven by the servo motor.The tool can be installed with circular blades and decagonal blades .etc which are especially suitable for cutting woven materials
Applicable industries: Leather, Textiles, Fabric, No-woven Fabric, Fur, Multi-layer, Carpet, Sporting Goods and other industries

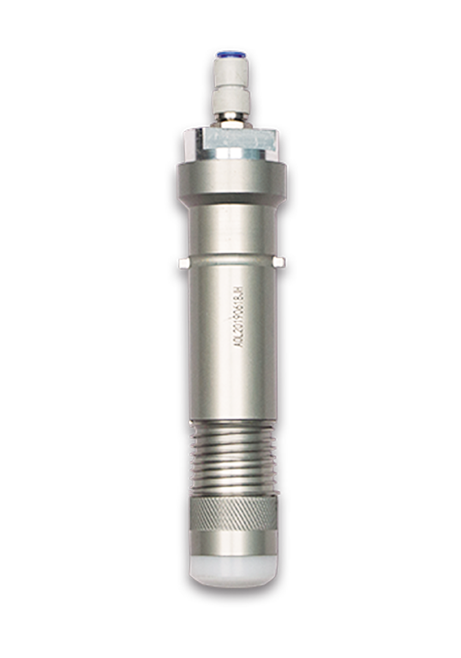

Pneumatic knife

Driven by compressed air,Pneumatic Knife Tool with 6mm stroke, is especially for cutting hard and compact materials. Equipped with different kinds of blades,it can make different process effect.The tool can cut the material up to 110mm by using specialized blades
Applicable industries: Rubber Board , PTFE , Graphite Board, Asbestos Board, Asbestos Free Board, Fluorine Rubber Board, Sound Insulation, etc
